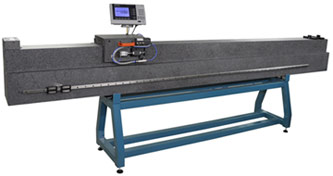

BANCO DI TARATURA E DI AZZERAMENTO PER STRUMENTI DI MISURA PER INTERNI ED ESTERNI DI GRANDI DIMENSIONI
LONGITUDINAL LENGHT MEASUREMENT TOOL FOR ZERO-SETTING OF BORE GAGES, OUTSIDE MICROMETERS, LARGE SIZE INSIDE OR OUTSIDE CALIPERS. POSSIBILITY TO BE USED ALSO FOR PERIODICAL CALIBRATION OF THESE INSTRUMENTS.


The structure of the instrument is based on black granite with air bearings for mobile main carriage displacement. The carriage clamping implemented by depression. The measurement contact surfaces are made of chromium-coated hardened steel (hardness ~ 1000 HV).

The air bearings allow an easy and fast movement of the measurement table (carriage) with possibility of a final micrometric adjustment by a clutch.
The mobile part has a free movement with constant applied meas. force to intercept the reverse point during the measurement of external or internal diameters.
